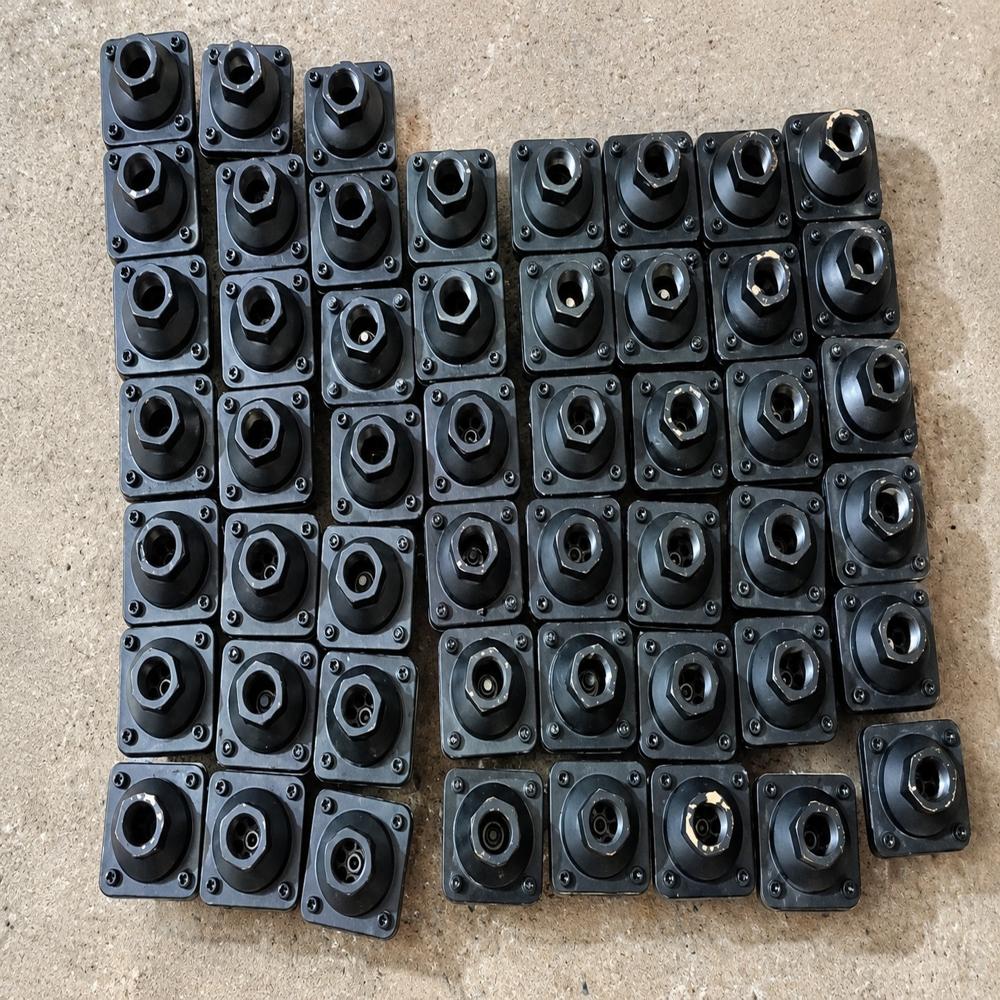

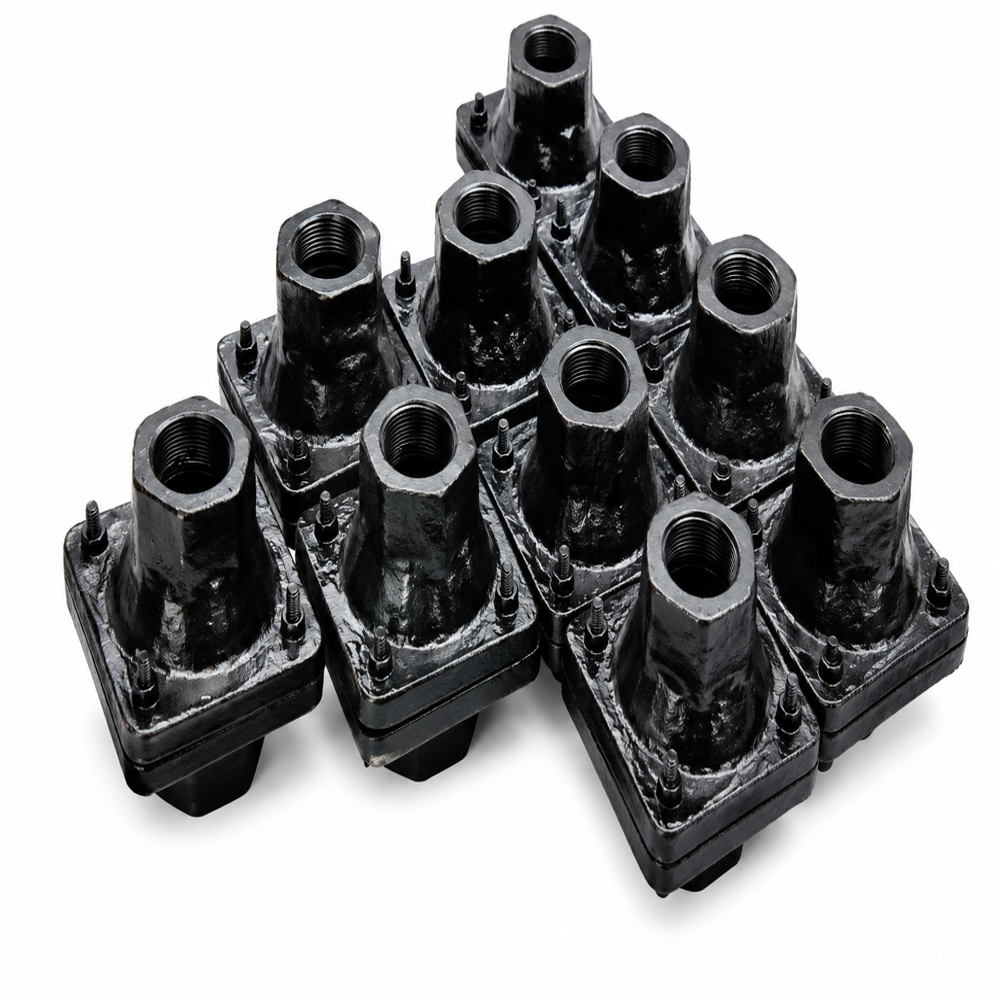

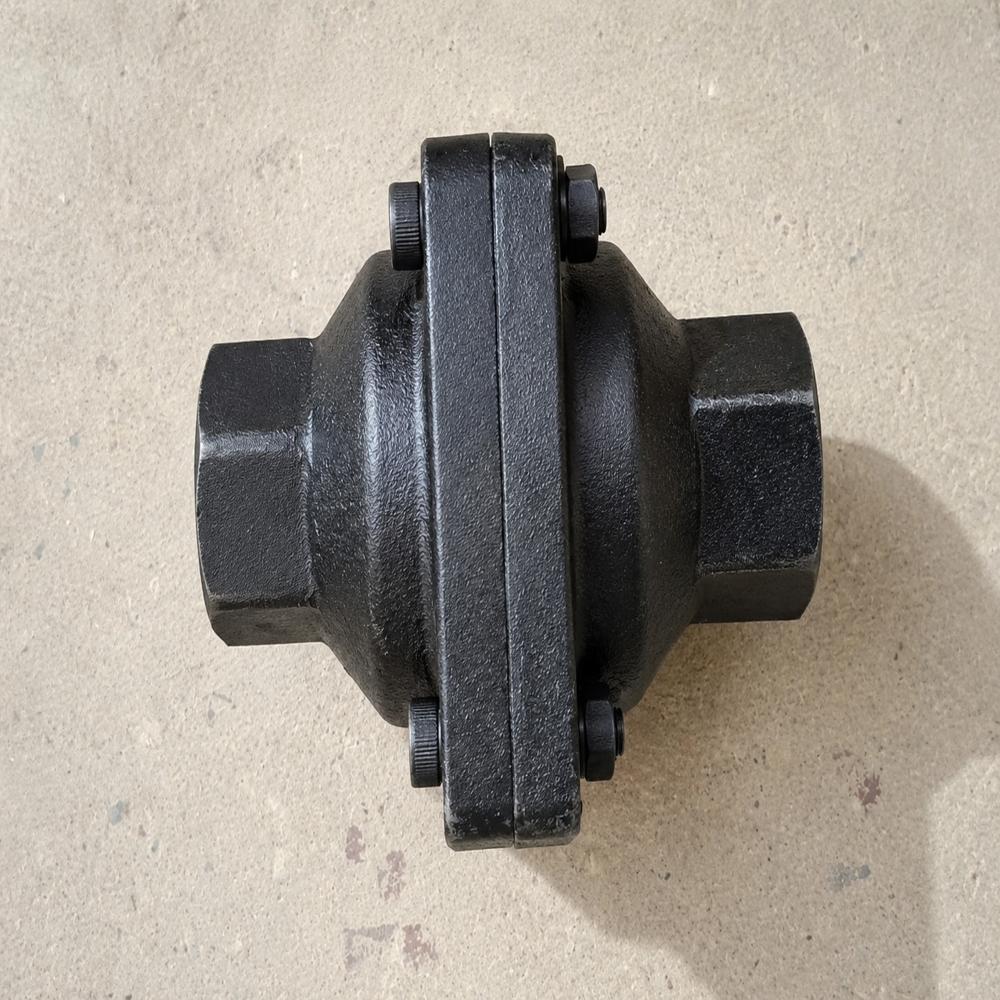

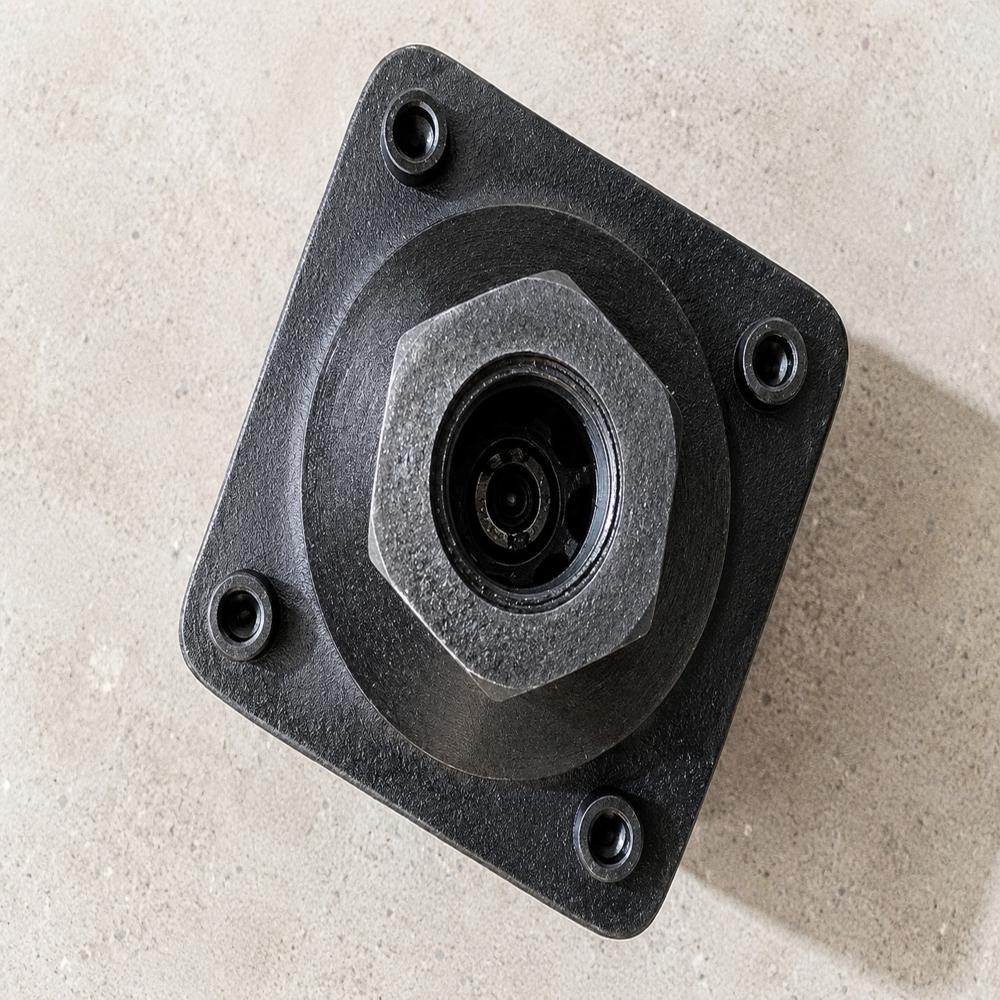

Diaphragm Type Non Return Valve

About Diaphragm Type Non Return Valve

Pneumatic non-return valves are one of the simplest types of pneumatic valves available. They allow compressed air to flow in one direction and prevent or block it from flowing in the opposite direction. Also known as a check valve these simple but effective devices help to eliminate any potential damage that may be caused by backflow pressure.

Specification

Size	15NB, 25NB, 40NB, 50NB, 65NB, 80NB, 100NB
Material	Cast Iron Body & Aluminum Body
Brand	JMEP
Features	easy to install, low cost maintenance, durable
Usage/Application	to control pneumatic back pressure
Color	Black
Connection Type	Threaded & flange ends

Unidirectional Flow Assurance

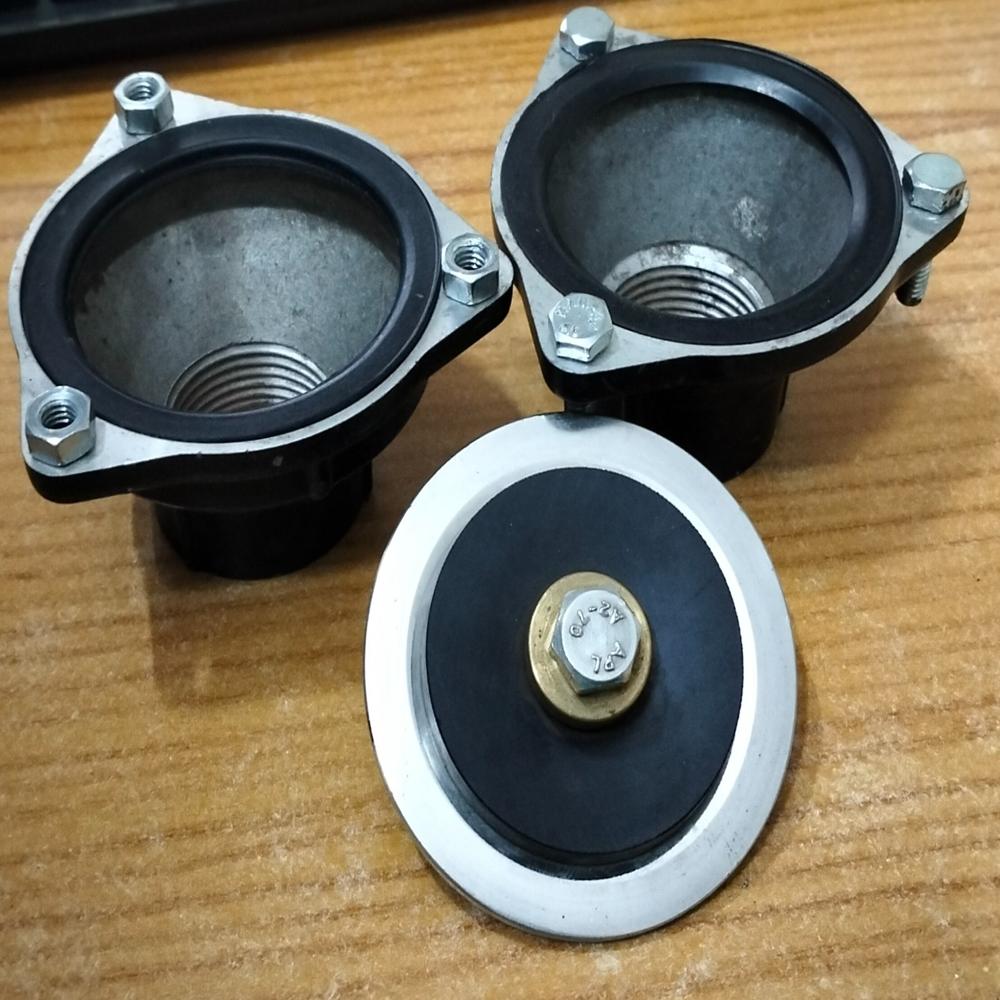

The diaphragm type non-return valve ensures that fluid flows in only one direction, protecting equipment from damage caused by reverse flow. This is particularly valuable in industrial setups where process fluid integrity is critical. The robust diaphragm mechanism responds efficiently to changes in flow pressure, providing consistent performance under varying operational conditions.


Versatile Size Options for Industrial Fit

Offered in a broad range of sizes-15NB, 25NB, 40NB, 50NB, 65NB, 80NB, and 100NB-these valves can be seamlessly integrated into different pipeline configurations. Their adaptability makes them well-suited for a variety of industrial sectors, from small-scale manufacturing units to large processing plants.
